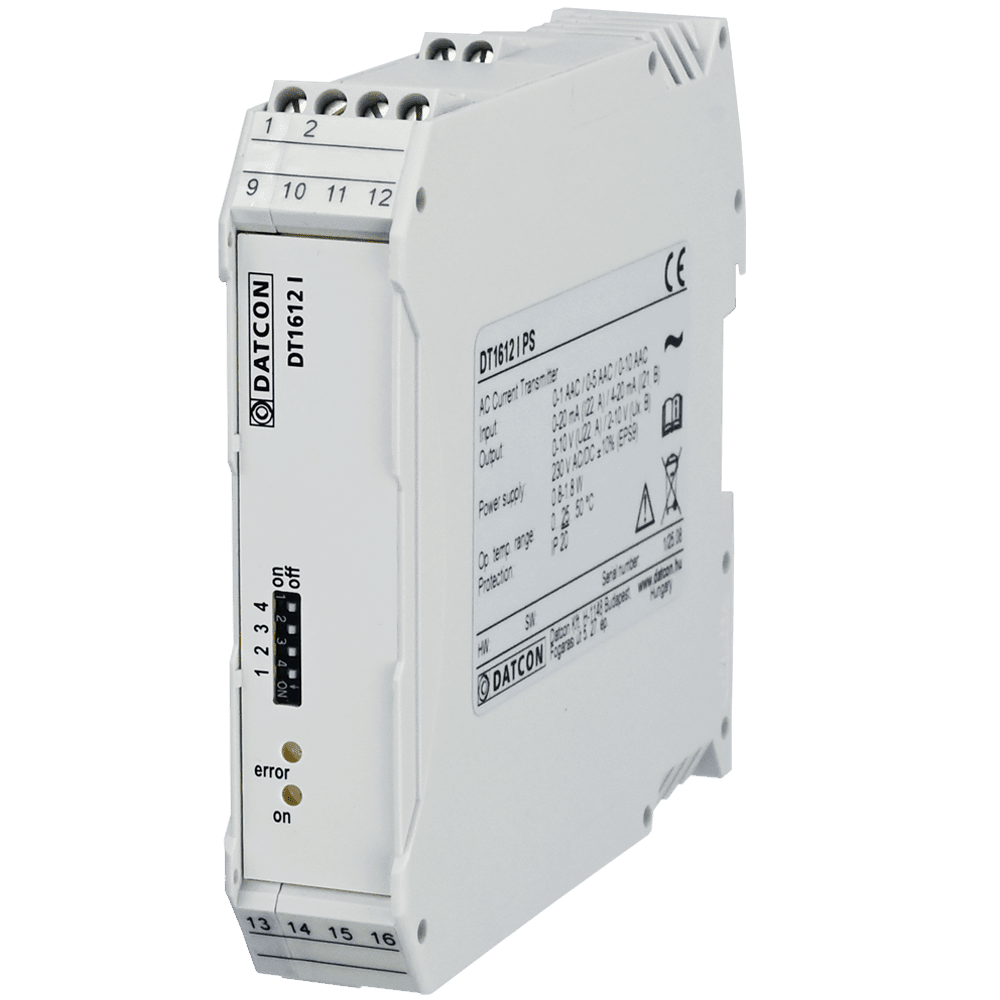

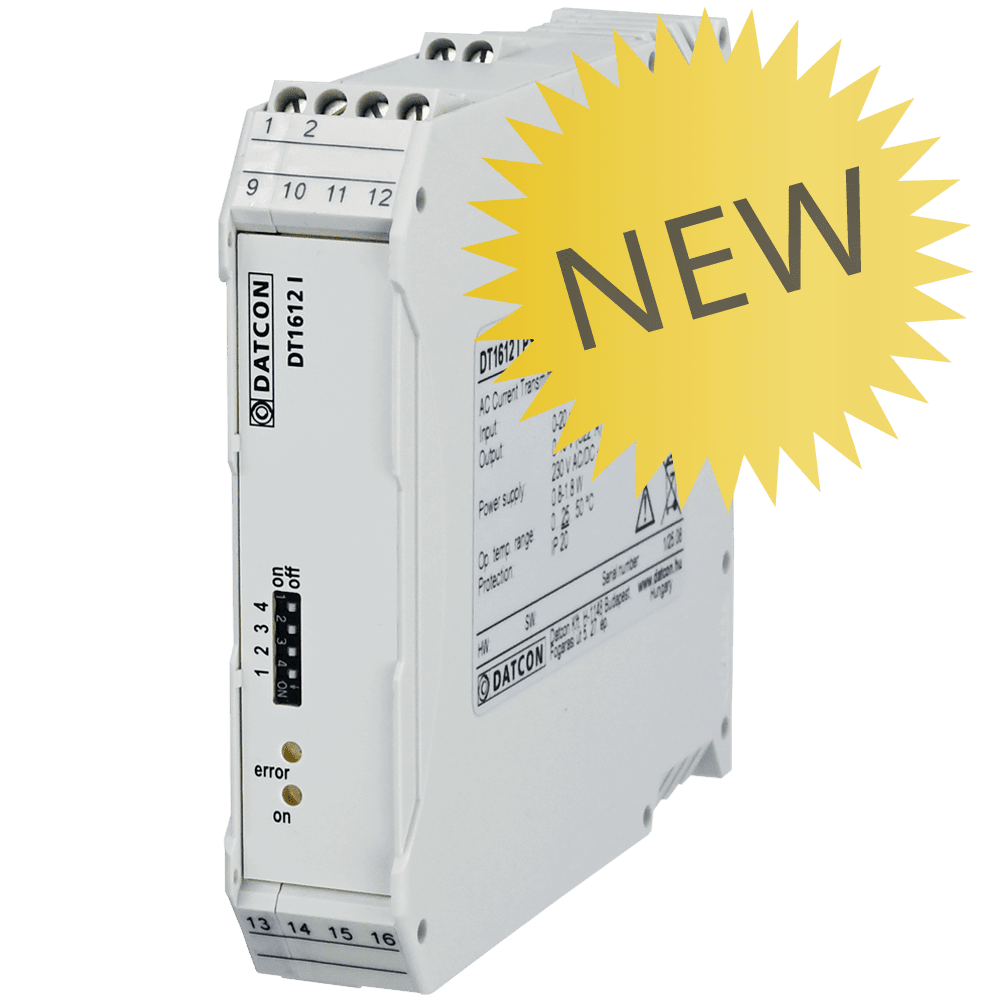

The DT1612 I AC current transmitters produce an output signal proportional to the true effective value (TRMS) of the input signal. The input is separated from the electrical network to be measured by a wide-band measuring transformer.
The inputs of the transmitters meet the requirements of the CAT III measurement category.
The input measuring ranges can be selected using front-panel switches:
The continuous input overcurrent capability is 20 A.
The measuring range can be expanded as desired with an external current transformer with a ratio of x/5 or x/1.
The transmitters have two outputs:
The output signal ranges can also be selected with a front panel switch.
Transmitter accuracy: 0.2%, in the 40 – 400 Hz frequency range.
Settling time: 120ms (max.)
The devices can be ordered with two types of power supply:
The inputs, outputs and power supply are galvanically isolated from each other, the separation meets the requirements of EN 61010-1.
Front panel indicators indicate the transmitter’s operational status and any error conditions.
The device is a terminal housing design, width: 22.5 mm.
The transmitters fully comply with the requirements of EN 60688.
| Safety data: | |
|---|---|
| The connection terminals of the inputs, outputs and supply voltage are galvanically isolated from each other. The isolation complies with the requirements of EN 61010-1, taking into account the following: | |
| Pollution level: | 2 |
| Measurement category: | CAT III |
| Input parameters: | |
| Input current: | 0–1 AAC / 0–5 AAC / 0–10 AAC |
| Continuous overcurrent capability: | 20 A |
| Short-term (1 sec.) overcurrent capability: | 200 A |
| Input consumption: | 0.2 VA (max.) |
| Frequency range: | 40–400 Hz |
| Output parameters: | |
| Output voltage: | 0–10 V (max. 14 V) |
| Load resistance: | 500 ohm (min.) |
| Output current: | 0–20 mA (max. 24 mA) |
| Termination resistance: | 500 ohm (max.) |
| Overvoltage protection: | 18 V (limiter) |
| Overcurrent protection: | 40 mA (limiter) |
| Settling time: | 120 ms (max.) |
| Output signal error: | 0.2% (max.) |
| Temperature dependence: | 25 ppm / °C (typical) |
| Frequency dependence: | 0.2% max. (40–400 Hz) |
| Supply voltage dependence: | negligible |
| Load dependence: | negligible |
| Conversion characteristic: | TRMS value |
| Power supply: | |
| Supply voltage: | 24 VDC ±10%(DT1612 I ...) 230 V AC/DC ±10% (DT1612 I ... PS) |
| Consumption: | 1.2 W (DT1612 I ...) 1.5 VA (DT1612 I ... PS) |
| Ambient conditions: | |
| Operating temperature range: | 0–50 °C, on request: -20 – +50 °C |
| Relative humidity: | 90% (max., non condensing) |
| Place of installation: | cabinet |
| Installation (recommended): | vertical (mounted on horizontal rail) |
| Electromagnetic compatibility (EMC) According to EN 61326-1: | |
| Interference emission: | Group 1, Class B |
| Interference immunity: | industrial environment |
| General data: | |
| Design: | TS-35 rail-mounted terminal housing, material: polyamide PA6.6 |
| Electrical connection: | screw terminal |
| Connecting wire cross-section: | 0.25–2.5 mm2 |
| Dimensions: | 22.5 × 104 × 114 mm (width × height × depth) |
| Weight: | 0.125 kg |
| Protection: | IP 20 |
| Detailed information is in operating instructions. The Manufacturer maintains the right to change the technical data! | |
