Product features
- Display in engineering units
- 4-20 mA loop-powered
- 4 1/2 digit LCD display
- 15.2 mm character height
- Min. / Max. values detection 2 isolated limit outputs
- Easy on site configuration
- IP 65 (front) and IP 30 (rear) protection

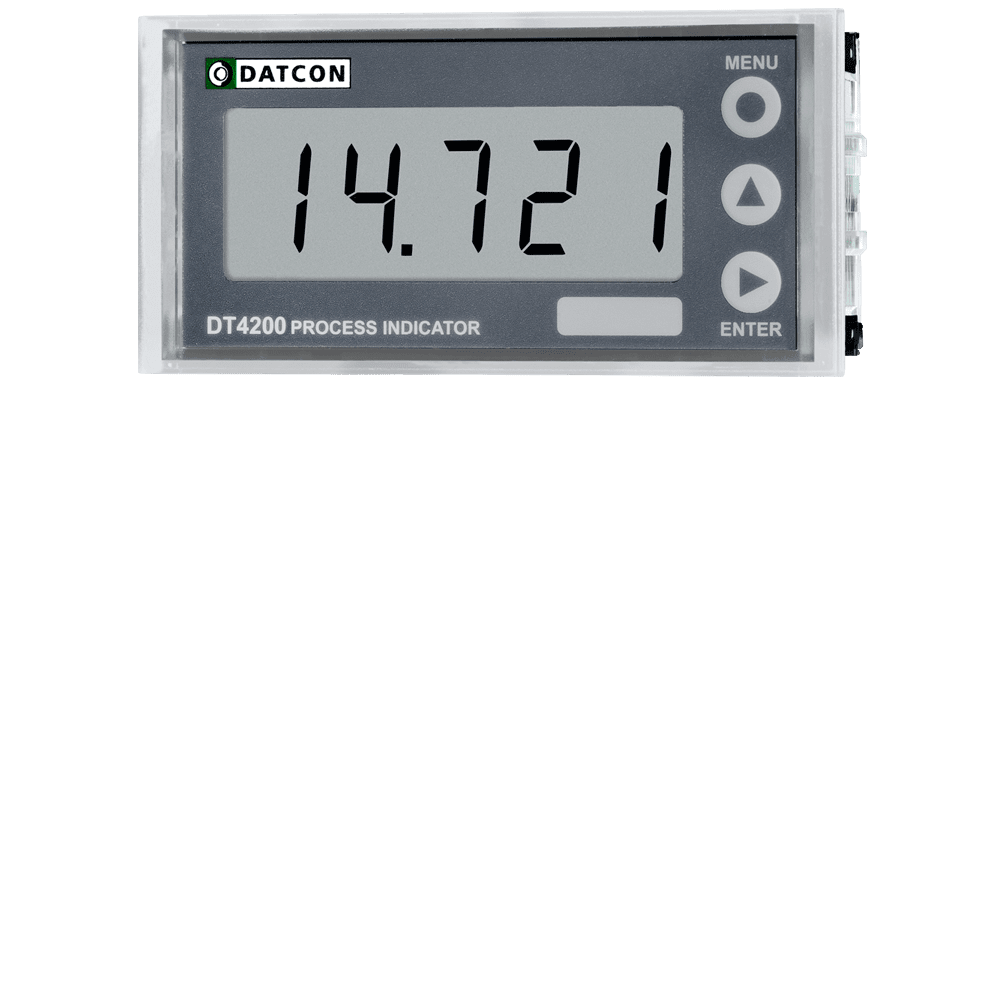

DT4200 Process Indicator
Product description
The DT4200 Process indicators enable linear process variables to be displayed in engineering units on the control
panel. The unit is loop-powered from 4-20 mA signals, dropping less than 2 V at 20 mA.
Two isolated outputs are available with different operating modes for limit signaling or for simple control purposes.
The process indicators housed in a DIN standard 96 × 45 mm ABS case with IP 65 protection from the front and IP 30 protection from the back side. Large 4 ½ digit 15 mm character height liquid crystal display make process variables easily visible at a distance.
A label defining the appropriate engineering unit is attached to the right of the display. The unit can be set up to reverse the display „direction” (i.e. to produce a decreasing displayed value for a rising signal input) and to display a decimal point if required.
Easy on-site configuration through the front panel keypad is a major advantage of the microcontroller-based technology.
The settings of zero and end-values are non-interactive, making the configuration process rapid and simple.
The configuration parameters: scaling, decimal point position, display refresh-rate, signal filtering, limit modes, limit values, etc. are stored in EEPROM.
A two level password protects the settings from unauthorised changes.
Technical specifications
| Safety data: | |
|---|---|
| The connection terminals of the supply voltages are isolated from each other, the isolation is in compliance with the standard EN 61010-1, taking into consideration the following: | |
| Pollution level: | 2 |
| Measurement category: | II |
| Input parameters: | |
| Input signal: | DC current |
| Characteristics: | linear |
| Measurement range: | 4-20 mA |
| Overrange: | 3.5-20.5 mA |
| Sampling rate: | 15 measurement / sec. |
| Number of averaged samples: | 1 / 2 / 4 / 8 / 16 / 32 (selectable) |
| Drop: | < 2 V @ I=20 mA |
| Accuracy: | 0.01% @ Ta = 23 °C ±2 °C |
| Temperature-coefficient: | ±20 ppm / °C |
| Display: | |
| Display: | 4 1/2 digit, 7 segments, decimal point and negative sign |
| Display unit: | LCD, 15.2 mm character height |
| Display value assigned to 4 mA: | anywhere within the range |
| Display value assigned to 20 mA: | anywhere within the range |
| Decimal point: | its position can be selected, or it can be switched off |
| Display refreshing time: | 0.1; 0.3; 0.5; 1.0; 2.0 sec. (selectable) |
| Manual controls: | |
| Manual controls: | 3 membrane push-buttons on the front cover |
| Output parameters: | |
| Output: | 2 limit outputs |
| Output type: | optically isolated passive switching transistor |
| Leakage current: | I < 0.1 mA @ 9 V |
| Drop: | U < 1 V @ 10 mA |
| Load reating: | 30 V, 30 mA max. |
| Refreshing time: | same as the display refreshing time |
| Hysteresis: | 0 - ±999 |
| Power supply: | |
| Power supply: | 4-20 mA loop-powered, reverse polarity protected |
| Ambient conditions: | |
| Operating temperature range: | 0 - +60 °C (-20 - +60 °C for customer request) |
| Relative humidity: | 90% (max., non-condensing) |
| Place of installation: | cabinet, control panel |
| Electromagnetic compatibility (EMC) accordance with the standard EN 61326 |
|
| Immunity: | industrial area |
| Noise emission: | Group 1, Class B |
| General data: | |
| Housing: | panel instrument |
| Connection: | push-in direct connection |
| Connection cable: | 0.25-1.5 mm2 (max.) |
| Dimensions: | 96 × 48 × 39 mm (width × height × depth) |
| Weight: | 0.1 kg |
| Protection: | IP 65 (front), IP 30 (rear) |
| Detailed information see in operating instructions. The Manufacturer maintans the right to change the technical data! | |
