Product features
- Display in engineering units
- 4 1/2 digit LCD, 20.5 mm character height
- 4-20 mA loop powered
- Min. / Max. values detection
- 2 isolated limit outputs
- 0.03% accuracy, ±20 ppm / °C
- Easy on-site configuration
- DT9000: IP 65

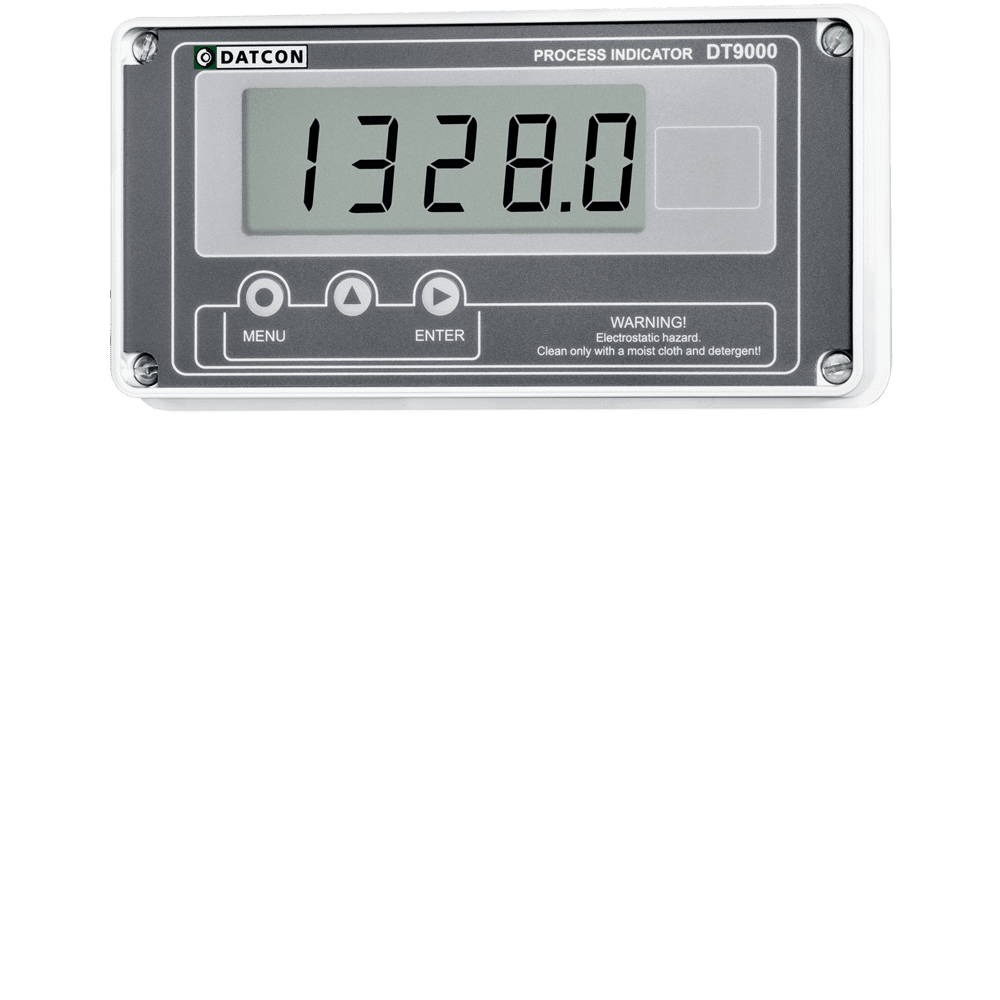

DT9000 N Process Indicator
Product description
The DT9000 N Process Indicators enable linear process variables to be displayed in engineering units. Two
isolated outputs are available with different operating modes for limit signaling or for simple control purposes. Both indicators are looppowered from 4-20 mA signals, dropping less than 2 V at 20 mA.
Large 4 ½-digit, 20.5 mm height liquid crystal display make process variables easily visible at a distance.
A label defining the appropriate engineering unit is attached to the right of the display. Both indicators can be set up to reverse the display „direction” (i.e. to produce a decreasing displayed value for a rising signal input) and to display a decimal point if required.
Easy on-site configuration through the front panel keypad is a major advantage of the microcontroller-based technology.
The settings of zero and full-scale values are non-interactive, making the configuration process rapid and simple.
The configuration parameters: scaling, decimal point position, display refresh rate, signal filtering, limit modes, limit values, etc. are stored in EEPROM. A two level password protects the settings from unauthorised changes.
The DT9000 N is housed in a moulded polycarbonate case which is dust-tight and houseproof to IP 65 to allow for installation in the field or on the control panel.
Technical specifications
| Safety data: | |
|---|---|
| The connection terminals of the supply voltages are isolated from each other, the isolation is in compliance with the standard EN 61010-1, taking into consideration the following: | |
| Pollution level: | 2 |
| Measurement category: | II |
| Input parameters: | |
| Input signal: | DC current |
| Characteristics: | linear |
| Measurement range: | 4-20 mA |
| Overrange: | 3.5-20.5 mA |
| Sampling: | 15 measurement / sec. |
| Number of averaged samples: | 1; 2; 4; 8; 16; 32 (selectable) |
| On input terminals: | < 2.2 V @ I= 4 mA, < 2 V @ I= 20 mA |
| Accuracy: | 0.02% @ Ta = 23 °C ±2 °C 0.05% @ -20 °C < Ta < +60 °C |
| Display / Manual controls: | |
| Display: | 4 1/2 digit, 7 segments, decimal point and negative sign |
| Display unit: | LCD, 20.5 mm character height |
| Range: | -19999 - +19999 |
| Display value assigned to 4 mA: | anywhere within the range |
| Display value assigned to 20 mA: | anywhere within the range |
| Decimal point: | its position can be selected, or it can be switched off |
| Display refreshing time: | 0.1; 0.3; 0.5; 1.0; 2.0 sec. (selectable) |
| Manual controls: | 3 membrane push-buttons on the front cover |
| Power supply: | |
| Power supply: | 4-20 mA loop-powered, reverse polarity protected |
| Output parameters: | |
| Output: | 2 limit outputs |
| Output type: | optically isolated passive switching transistor |
| Load rating: | 30 V, 30 mA max. |
| Refreshing time: | same as the display refreshing time |
| Hysteresis: | 0 - ±999 |
| Electromagnetic compatibility (EMC) accordance with the standard EN 61326-1 |
|
| Immunity: | Industrial area |
| Noise emission: | Group 1, Class B |
| General data: | |
| Housing: | moulded polycarbonate case, installable as a field or panel |
| Connection: | IP 65 cable entry, push-in direct connection |
| Connection cable: | 0.25-1.5 mm2 (max.) |
| Dimensions: | 160 × 80 × 90 mm (width × height × depth) |
| Weight: | 0.7 kg |
| Protection: | IP 65 |
| Detailed information see in operating instructions. The Manufacturer maintains the right to change the technical data! | |
