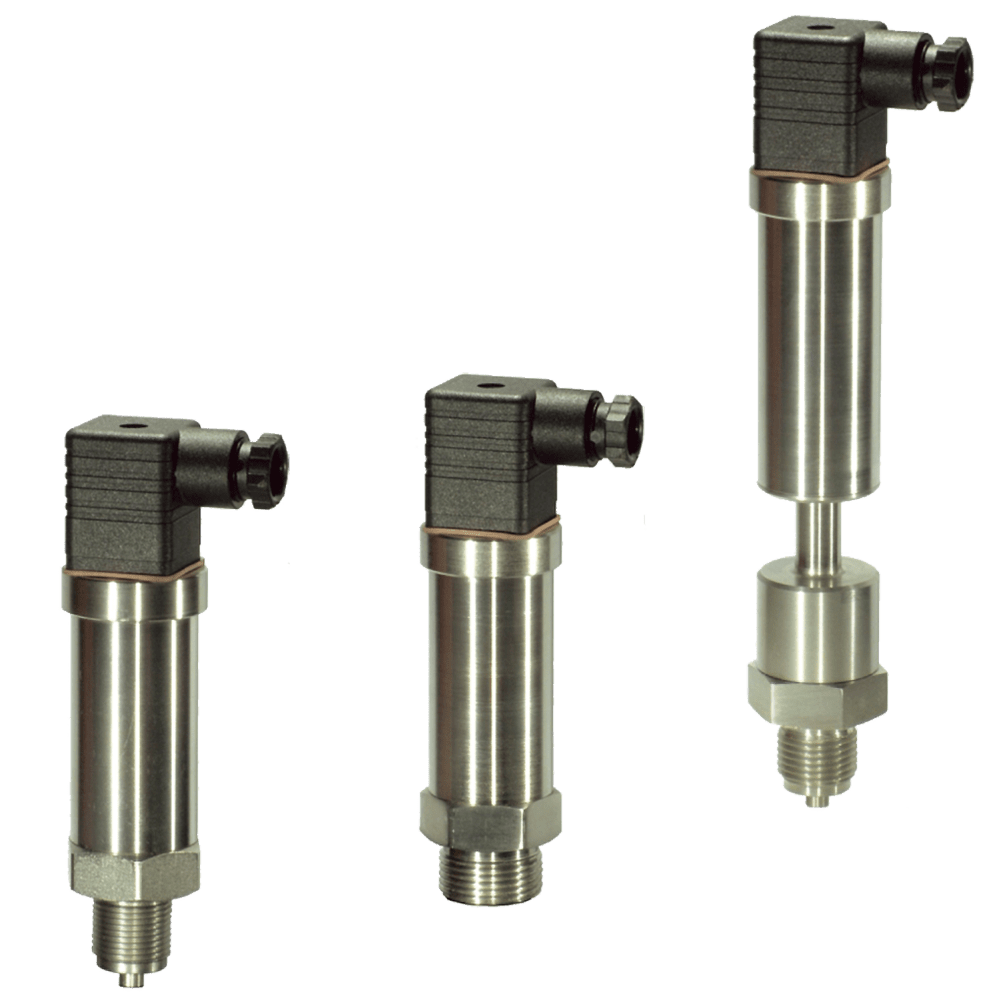

The DT720 … Pressure transmitters provide a 4-20 mA current signal proportional to the pressure connected to their input. The remote transmitters are available in 37 different measurement ranges, for measuring relative / absolute pressure and vacuum.
The temperature of the measured medium may vary between -25 °C and 140 °C (depending on the construction of the device), while the ambient temperature may range from -25 °C to 70 °C. The material being in contact with the medium is ceramic or KO36 steel, and the sealing may be Teflon (PTFE), Buna EP (EPDM), Viton (FKM), or Isolast 9503 (FFKM), depending on the medium and the temperature of the medium.
The transmitters are available with various threaded connections: G1/2”A / M20 x 1.5 manometer connection, G3/4”A front membrane construction.
| Safety data: | |||||||
|---|---|---|---|---|---|---|---|
| The connection terminals of the supply voltages are isolated from each other, the isolation is in compliance with the standard EN 61010-1, taking into consideration the following: | |||||||
| Pollution level: | 2 | ||||||
| Measurement category: | II | ||||||
| Input parameters: | |||||||
| Input signal: | pressure | ||||||
| Ranges: | see the table below | ||||||
| Overdrive capacity: | 150% | ||||||
| RANGES Special ranges that differ from the above are also available upon request. |
|||||||
| [mbar] rel. | [bar] rel. | [bar] rel. | [bar] rel. | [bar] rel. | [mbar] abs. | [mbar] abs. | [mbar] abs. |
| 0-100 | 0-1.00 | 0-25 | -1-0 | -1-16 | 0-400 | 0-1.00 | 0-25 |
| 0-160 | 0-1.60 | 0-40 | -1-1.00 | -1-25 | 0-600 | 0-1.60 | |
| 0-250 | 0-2.50 | 0-60 | -1-1.60 | 0-2.50 | |||
| 0-400 | 0-4.00 | 0-100 | -1-2.50 | 0-4.00 | |||
| 0-600 | 0-6.00 | 0-160 | -1-4.00 | 0-6.00 | |||
| 0-10 | 0-250 | -1-6.00 | 0-10 | ||||
| 0-16 | -1-10 | 0-16 | |||||
| Output parameters: | |||||||
| Output signal: | DC current, proportional to the measured pressure | ||||||
| Range: | 4-20 mA | ||||||
| Accuracy: | 0.25% (typically) | ||||||
| Temperature-coefficient: | 200 ppm / °C (0-75 °C between), 300 ppm / °C (-20-140 °C between) | ||||||
| Supply-voltage effect: | no | ||||||
| Response time: | 0.5 ms (10-90%) | ||||||
| Power supply: | |||||||
| Loop power supply voltage: | 12-30 VDC | ||||||
| Ambient conditions: | |||||||
| Operating temperature range: | see the table below | ||||||
| Type | Ambient temperature | Medium temperature | |||||
| DT720 L | -25 °C | -25 °C | | |||||
| DT720 M | -25 °C | -25 °C | | |||||
| DT720 H | -25 °C | -25 °C | | |||||
| Relative humidity: | 90% (max., non-condensing) | ||||||
| Place of installation: | outdoor | ||||||
| Electromagnetic compatibility (EMC): accordance with the standard EN 61326 |
|||||||
| Immunity: | industrial area | ||||||
| Noise emission: | Group 1, Class B | ||||||
| Data in general: | |||||||
| Housing: | KO36 steel housing | ||||||
| Process connection: | G1/2”A, M20 x 1.5 (manometer-connection), G3/4”A (front-membrane connection) |
||||||
| Electrical connection: | 3-pole connector DIN43650/IP 65 | ||||||
| Cross-section of the connected cable: | 2 × 0.25 mm2 (shielded cable) | ||||||
| Dimensions: | DT720 L: 36 × 154 mm (diameter × length) | DT720 M, DT720 H: 36 × 203 mm (diameter × length) | |||||
| Weight: | DT720 L: 0.3 kg, | DT720 M, DT720 H: 0.35 kg | |||||
| Protection: | IP 65 | ||||||
| Materials being in contact with the medium under measurement: | KO36 steel / Teflon (PTFE) / Buna EP (EPDM) / Viton (FKM) / Isolast 9503 (FFKM) |
||||||
| Detailed information see in operating instructions. The Manufacturer maintans the right to change the technical data! | |||||||
